Overview
In this update you will be migrating from an old version of the Latitude 9200 series to the latest version of the Latitude 9200 series. This will involve replacing Latitude program files on all workstations
The Latitude application consists of two main parts:
The Latitude client program, "LatitudeSQ.accde", installed on every workstation running Latitude. It is replaced every time you update Latitude to a new version. It contains all the Latitude screens, reports and programs and attaches (links to) your data in the SQL Server A database, on an SQL Server, containing your data that is shared by all workstations. You should back it up regularly (daily) in case you lose your server. In this update, you will not be replacing your data file, but only be changing its internal structure You will run the installer on the server to update your data file. Most companies then allow the Automatic Deployment Feature (ADF) to automatically replace the LatitudeSQ.accde on all workstations. If you do not use the ADF, run this installer on all workstations to replace the LatitudeSQ.accde client program on them
Before you start, make yourself aware of the location of your Downloads folder and Backup folder. These folders are usually on a server, but on small peer to peer networks will be on a workstation that is acting as a server. In either case they will usually be named as follows (although the drive letter is often something else):
L:\Latitude\
This is the main Latitude folder on a server. It contains the following subfolders. It also holds the master copy of the Latitude program file used by the Automatic Deployment Feature (ADF)
L:\Latitude\Downloads\
This is the folder the Installer stores all files it downloads for use during the installation. It is also a handy location for you to store any Latitude related downloads and documentation
L:\Latitude\Backup\
This is where you store zipped copies of your data file before you upgrade your 'production' data file
If you do not have Backup and Downloads folders as above, create them
Exchange Link Public Folder (optional)
If you have an Exchange Server and want to import your Latitude contacts, create a public folder in your Exchange Server eg. LatitudeContacts. This is the folder where the imported Latitude contacts are stored
NOTE: If you are one of the few customers who are running a Latitude 9200 series version older than version 9210.0801, you have to delete any Latitude.accde and Latitude.mde files in the C:\Lati99\ folder on the FIRST workstation you run the installer on. The ADF (Automatic Deployment Feature) will handle the files on subsequent workstations
Server Installation
Log in to your Server as a User with Administrator Rights
You need full rights to install new software and to create new folders
Place the Installer zip eg. LatitudeSQxx.xxxx.xx.zip file you downloaded from the Latitude website in the Downloads folder
eg. "L:\Latitude\Downloads\"
Extract and Run the Installer
Extract the LatitudeSQxx.xxxx.xx.exe from LatitudeSQxx.xxxx.xx.zip Double click the installer LatitudeSQxx.xxxx.xx.exe to run it

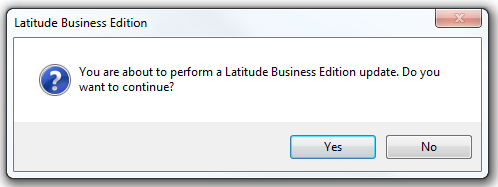

When prompted "You are about to perform a Latitude Business Edition update. Do you want to continue?", click "Yes"

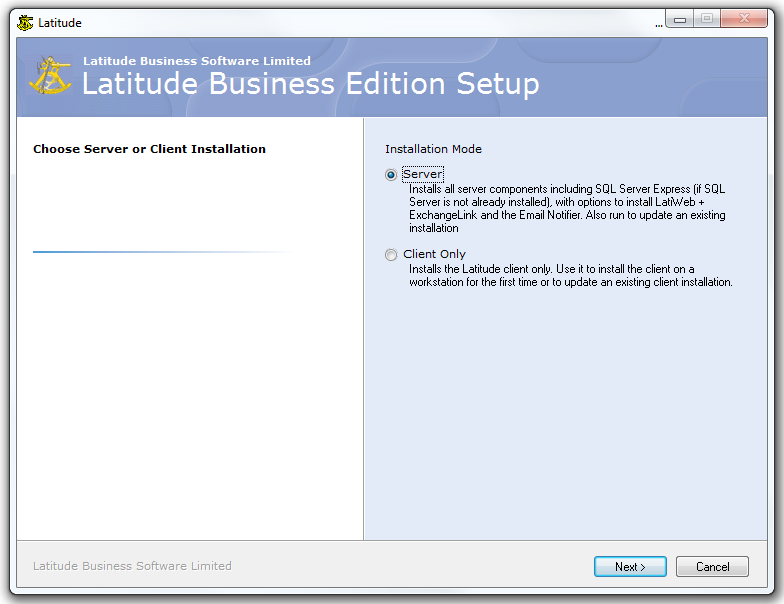

Click the "Server" installation mode
Click the "Next" button

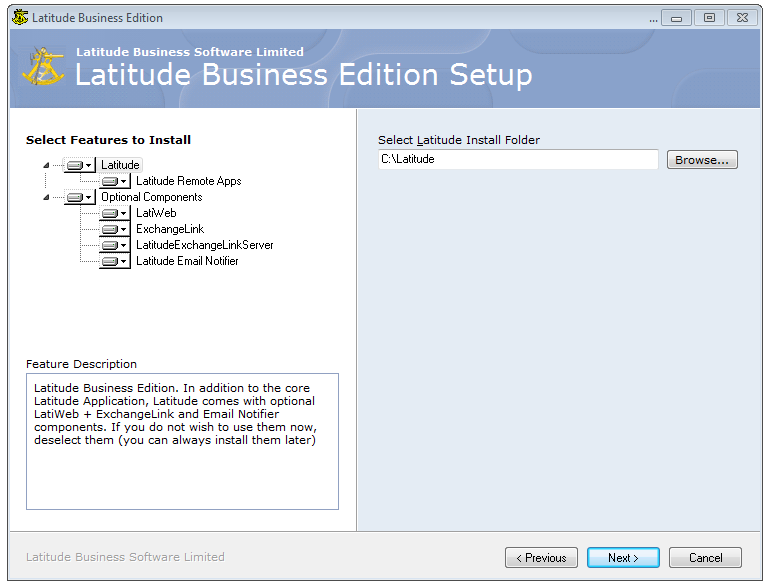

Select Features to Install
In addition to the core Latitude Application and Latitude Remote Client & Server components, Latitude comes with optional LatiWeb + ExchangeLink and Email Notifier components. If you do not wish to use them now, deselect them (you can always install them later)
Confirm Microsoft Access Runtime version to install (optional)
If you do not have Microsoft Access installed, confirm the version you want. We suggest Access 2010 Click the "Install Access 2007 Runtime" hyperlink to toggle between Access 2010 and Access 2007
Select the Latitude Install Folder
usually "C:\Latitude\" on a server Click the "Next" button and wait

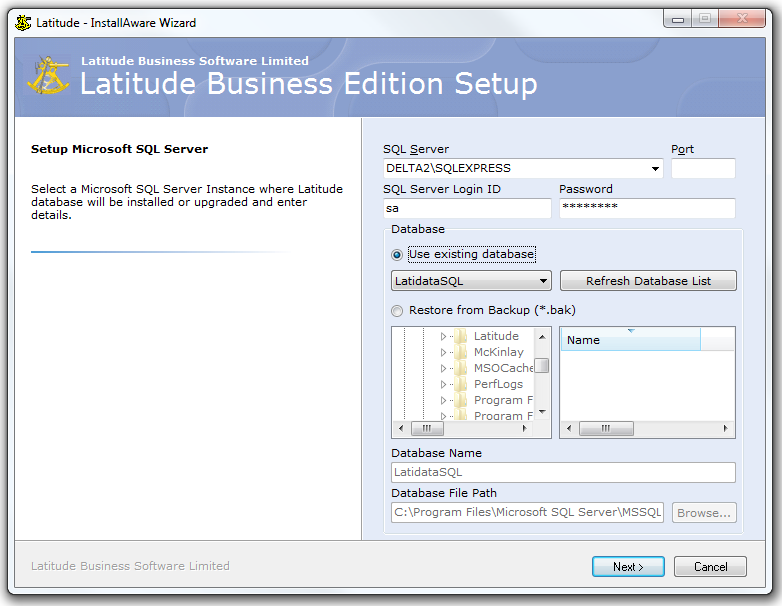

Select Latitude Database
Accept the default SQL Server or select another SQL Server from the dropdown Port - leave blank Enter the SQL server Login and Password for the sa account
Login ID: default is 'sa' Password: enter your 'sa' password
Use existing Database: keep ticked Click the Refresh Database List button Confirm the correct Latitude database name appears Click "Next" button

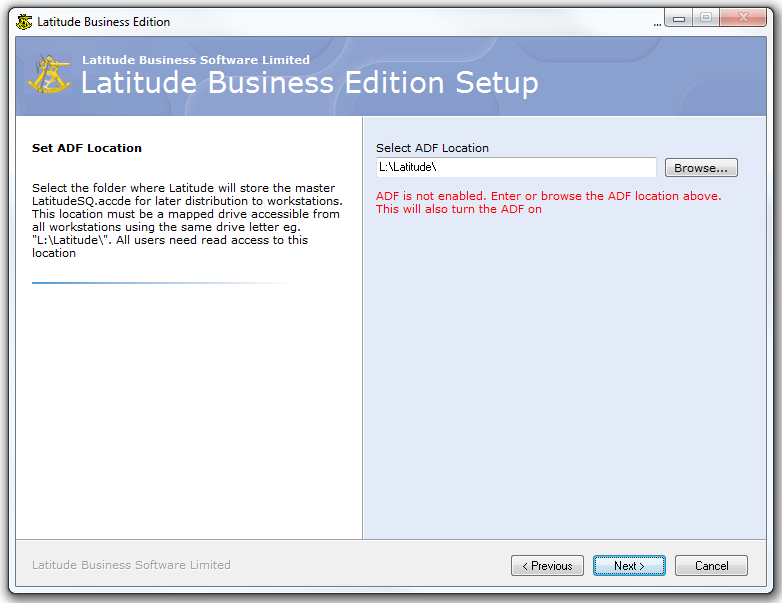

Set ADF Location (optional)
This screen will only appear if you have NOT selected an ADF location in a previous install Select the ADF folder, usually your main Latitude folder eg. "L:\Latitude\". This is where Latitude will store the master LatitudeSQ.accde for later distribution to workstations. This location must be a mapped drive accessible from all workstations using the same drive letter
Click the "Next" button

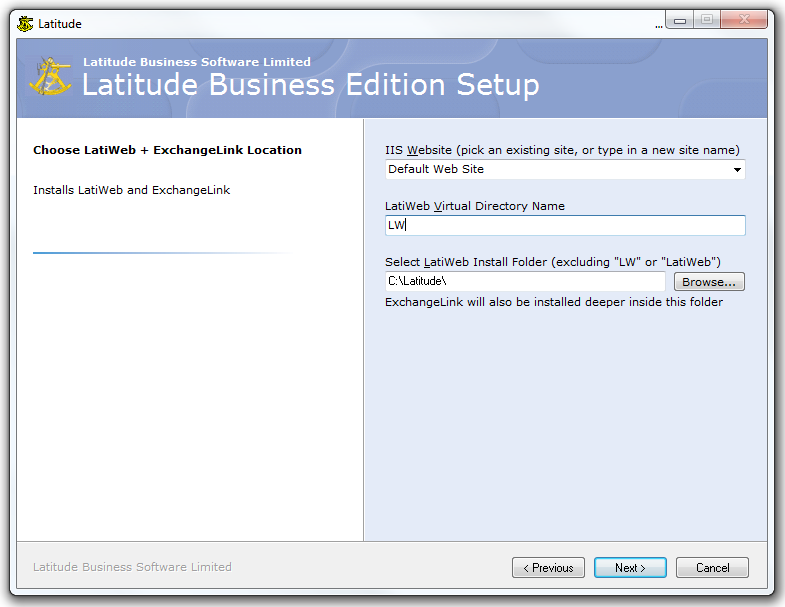

Location to install LatiWeb
If you have previously installed LatiWeb confirm the default values are correct and click the "Next" button to continue, else enter the following items Select a website on IIS to host LatiWeb Enter the LatiWeb Virtual Directory Name eg. "LW" Select a location for the installer to create a folder to hold LatiWeb files eg. if you choose "L:\Latitude\" and have entered the LatiWeb Virtual Directory Name = "LW", the installer will create "L:\Latitude\LW\" to store LatiWeb files
Click the "Next" button

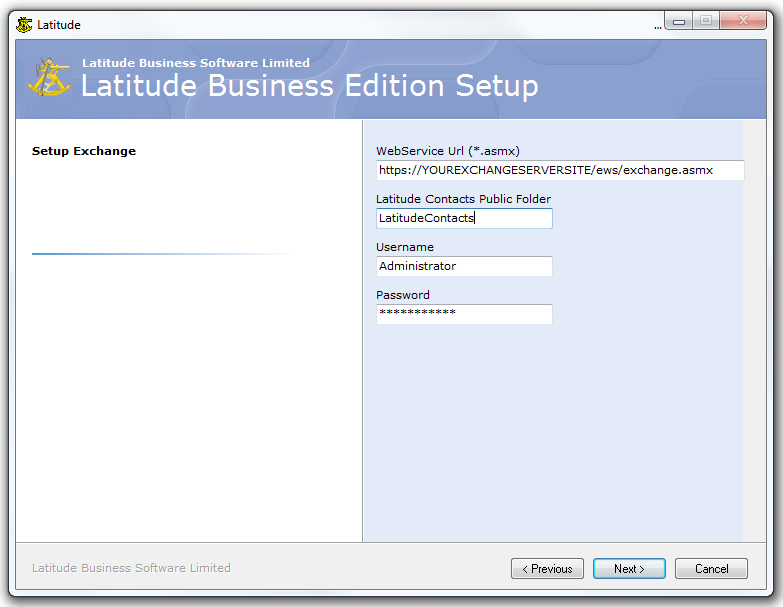

Setup Exchange Link
Web Service url - This is the Exchange web service url, replace the YOUREXCHANGESERVERSITE with your Exchange Server hostname Latitude Contacts Public Folder - This is the Exchange public folder where the imported Latitude contacts are stored Exchange Username - The Exchange Administrator Account Exchange Password - The Exchange Administrator password

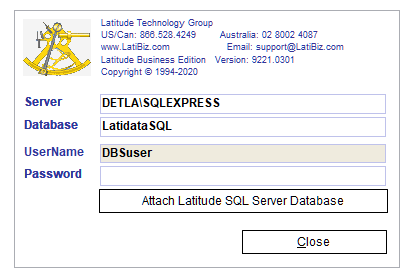

Attach Latitude Database
Confirm the Server, Database and Username are correct Enter the "DBSuser" password Click the "Attach Latitude SQL Server Database" button
Authorize, Upgrade and Reauthorize Latitude
When the Select Authorization Mode screen appears, Click "Yes"

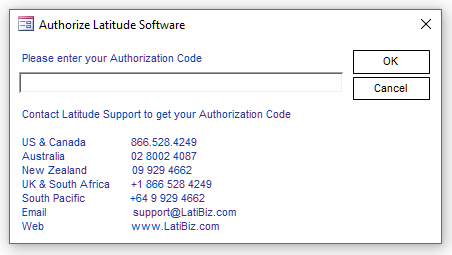

Enter your Authorization Code and click "OK"

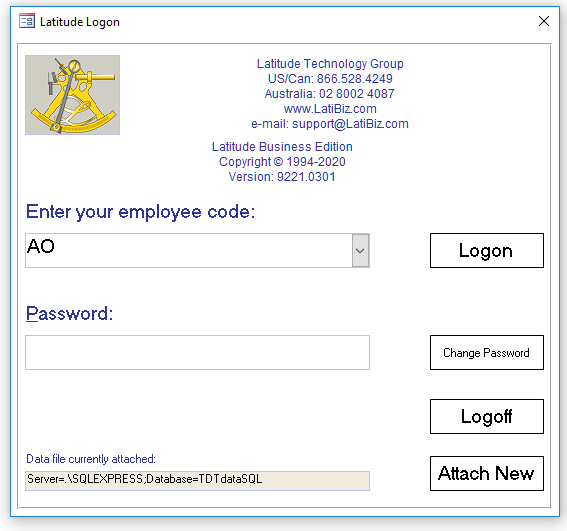

Choose any user and Click 'Logon'

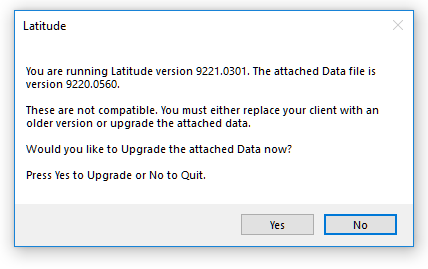

When asked to upgrade, click "Yes"
Enter the "DBSuser" password again Click the "Attach & Upgrade Latitude SQL Server Database" button

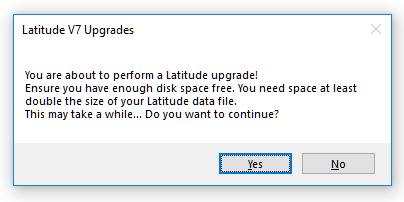

When asked "You are about to perform a Latitude Upgrade", click "Yes" and wait until the upgrade finishes
Enter your Authorization code again and click "OK"
Installer Finish Screen
Click the "Finish" button to close the Installer
Workstation Installation - using ADF
Double click the Latitude Business Edition shortcut in the desktop

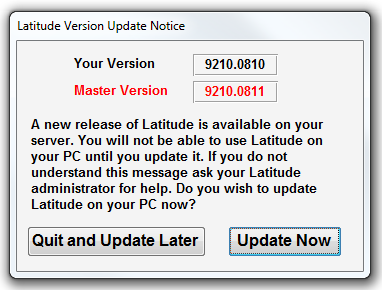

Latitude will prompt "A new release of Latitude is available on your server. Do you wish to update Latitude on your PC now?, Click "Update Now" and wait Double click the Latitude Business Edition shortcut in the desktop to run the new version of Latitude Repeat this workstation installation on all your Latitude workstations
Workstation Installation - using Installer
Workstation Security Setting
If you are not running Windows XP, you must disable User Account Control (UAC) before installing Latitude. NOTE: After successfully upgrading Latitude you should turn the UAC back on to maintain your security level
To disable UAC in Windows Vista
Go to Control Panel -> User Accounts
Click Turn User Account Control on or off Untick User User Account Control (UAC) tickbox Click OK Reboot the computer to apply the changes
To disable UAC in Windows 7
Go to Control Panel -> User Accounts Click Change User Account Control Settings Drag the scroll bar to Never Notify Click OK Reboot the computer to apply the changes
Log in to Windows as a User with Administrator Rights
You need full rights to install new software and to create new folders
Run the Installer
Run Windows Explorer and go to the Latitude Downloads folder eg. "L:\Latitude\Downloads\" Double click the Installer LatitudeSQxx.xxxx.xx.exe to run it again
When prompted "You are about to perform a Latitude Business Edition upgdate. Do you want to continue?". Click "Yes"

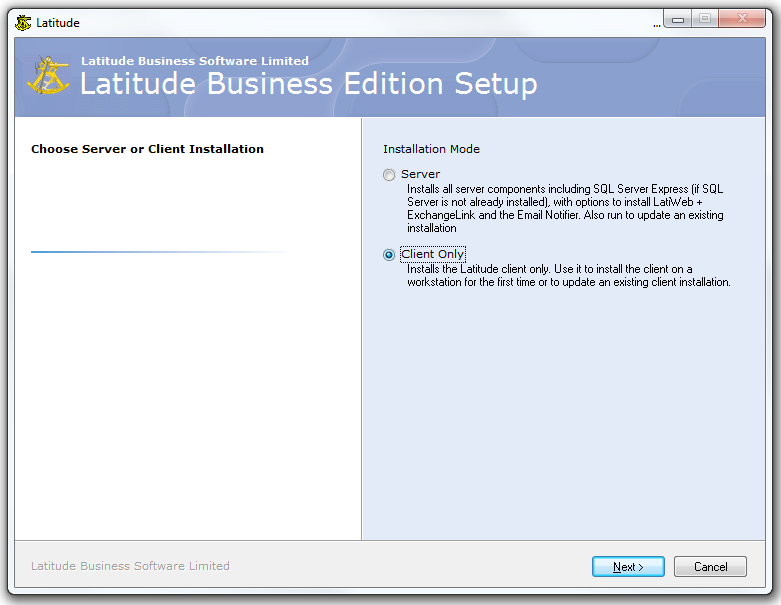

Choose the "Client Only" installation mode. Click "Next"
Confirm Microsoft Access Runtime version to install (optional)
If you do not have Microsoft Access installed, confirm the version you want. We suggest Access 2010 Click the "Install Access 2007 Runtime" hyperlink to toggle between Access 2010 and Access 2007

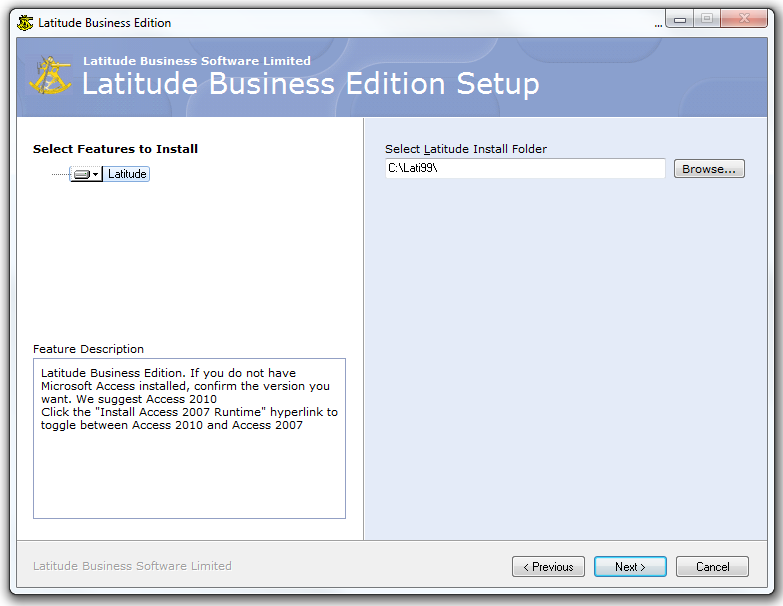

Select the Latitude Install Folder
usually "C:\Lati99\" on a workstation Click the "Next" button and wait

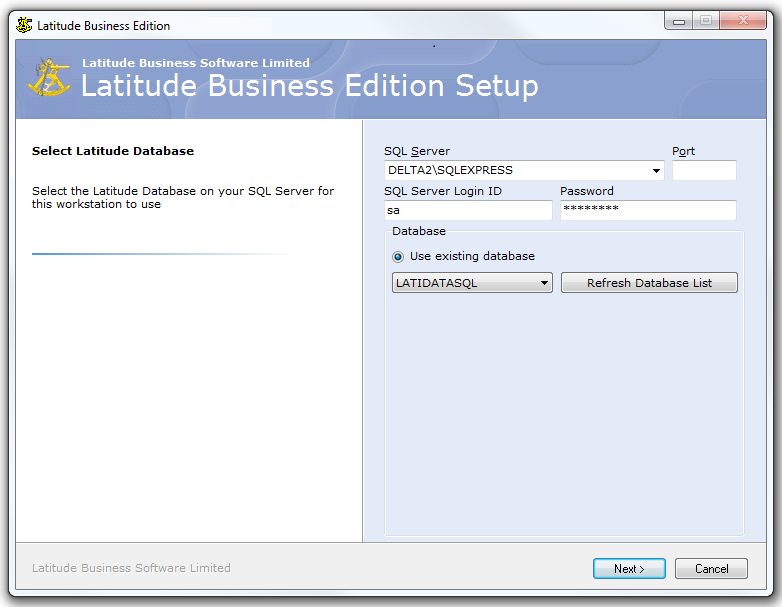

Select Latitude Database
Select your SQL Server from the dropdown Enter the SQL server Login and Password for the sa account
Login ID: default is 'sa' Password: enter your 'sa' password
Click the Refresh Database List button The Previous database used will be selected automatically Click "Next" and wait

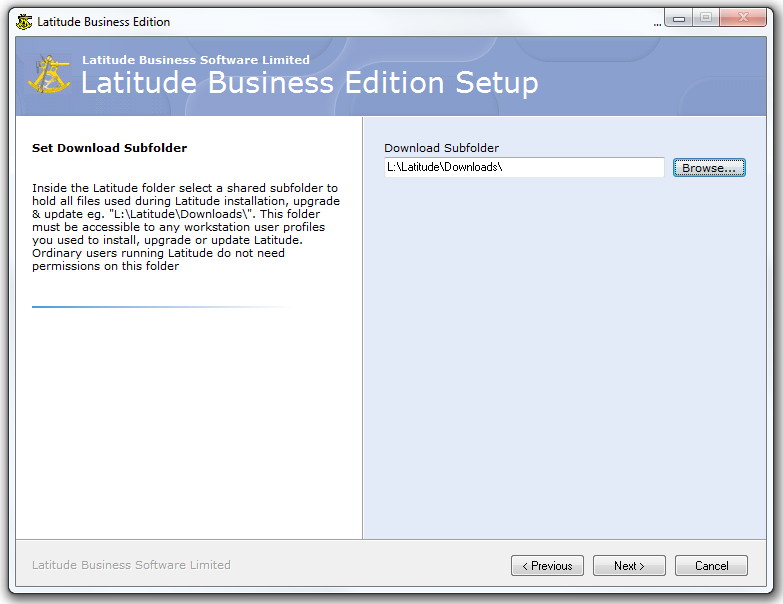

Confirm the location of your Download subfolder
eg. "L:\Latitude\Downloads\"
Click the "Next" button and wait

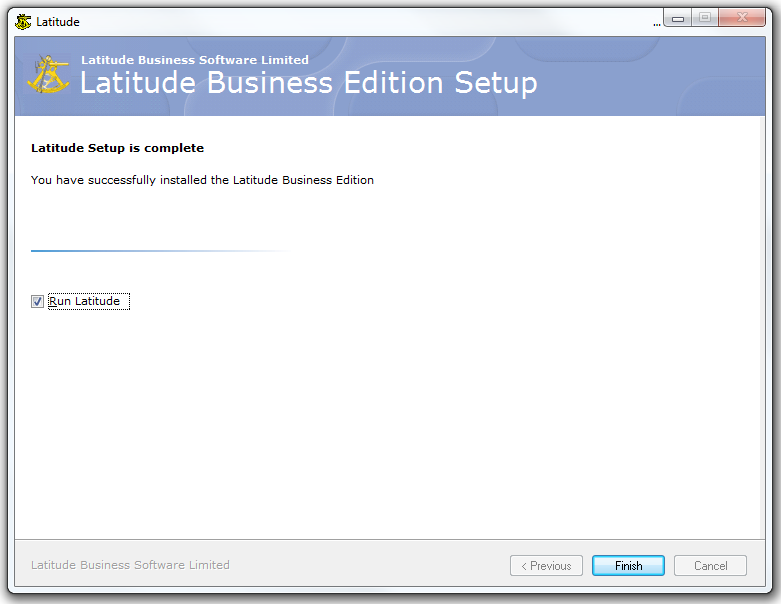

Installer Finish Screen
Click the "Finish" button to close the Installer
Repeat the Workstation Installation on all your Latitude workstations
Latitude Remote Client (LRC) Workstation Installation
To install the Latitude Remote Client (LRC) on your workstation
Create a mapped drive (e.g. L:\) pointing to \\SERVER\<ADF_LOCATION>\

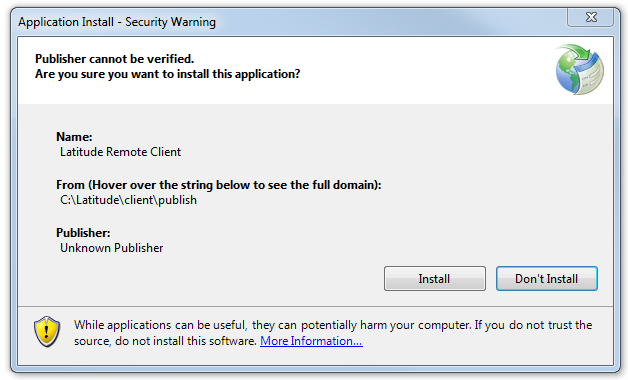

Run L:\remote\client\publish\setup.exe
Wait for the install to finish

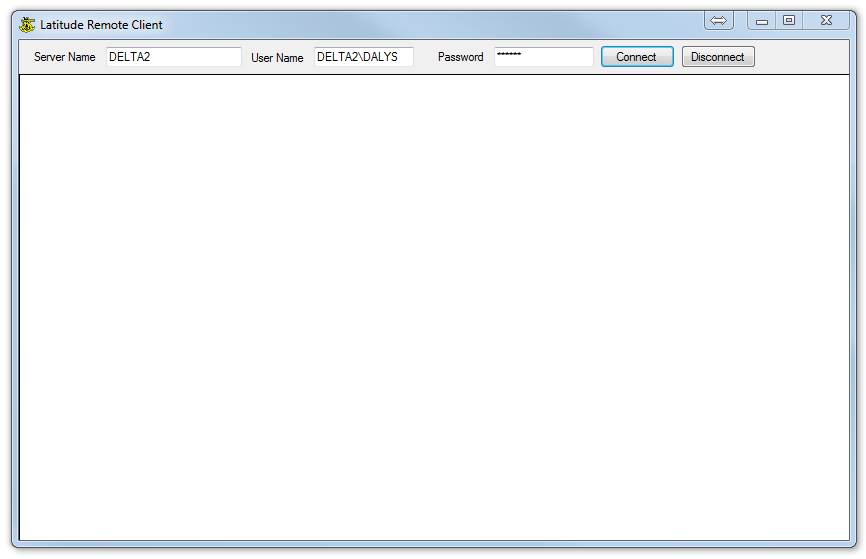

On your desktop, click the "Latitude Remote Client" shortcut
Enter the same RDS credentials you use to connect using your existing Microsoft Remote Desktop client
|
